TED36509 Bushing Installation Instructions (Manual #51)

One of the ways to improve the durability of a car suspension is to use polyurethane bushes instead of standard rubber ones. Due to their operating characteristics, polyurethane bushings often differ in design and installation method from standard bushes. An example of this are the rear beam bushings for Ford (Galaxy II, Mondeo IV, S-Max) and Volvo (S60 II, V60 I, V70 III, XC60 I, XC70 II) cars. In this case, the standard one-piece metal-rubber bush is replaced by a 6-piece polyurethane bush consisting of 2 polyurethane parts, 2 metal flanges, inner metal bushing and the metal washer. When installing the bush, the correct order of assembly of the components is important so that the new bush fulfils its task properly.

The instructions below show you how to properly replace this element.

1

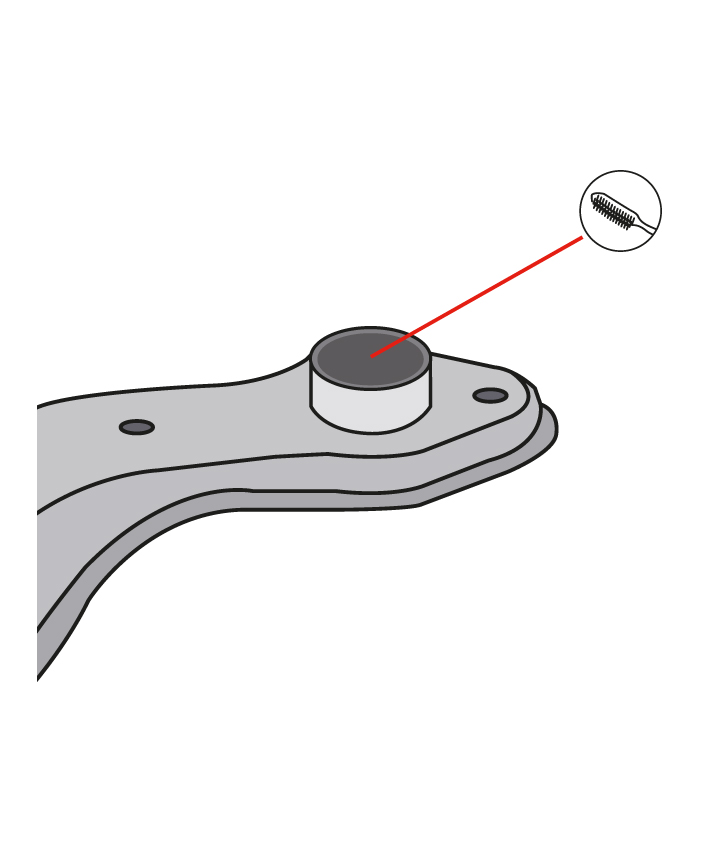

After removing the old bushings, clean the socket thoroughly.

2

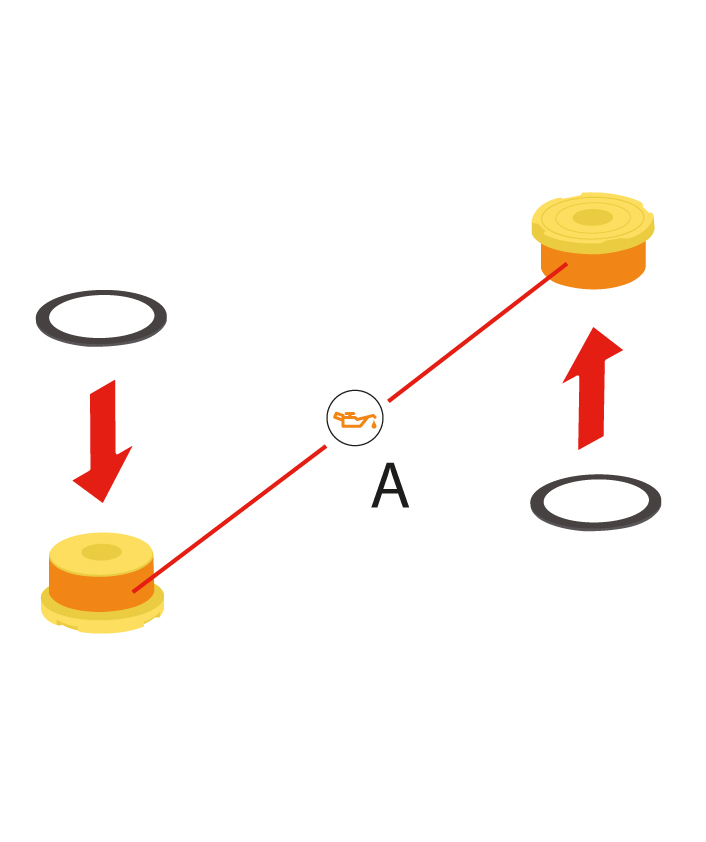

Metal rings should be placed on both halves of the polyurethane bushings and then the outer part of the bushings should be thoroughly lubricated.

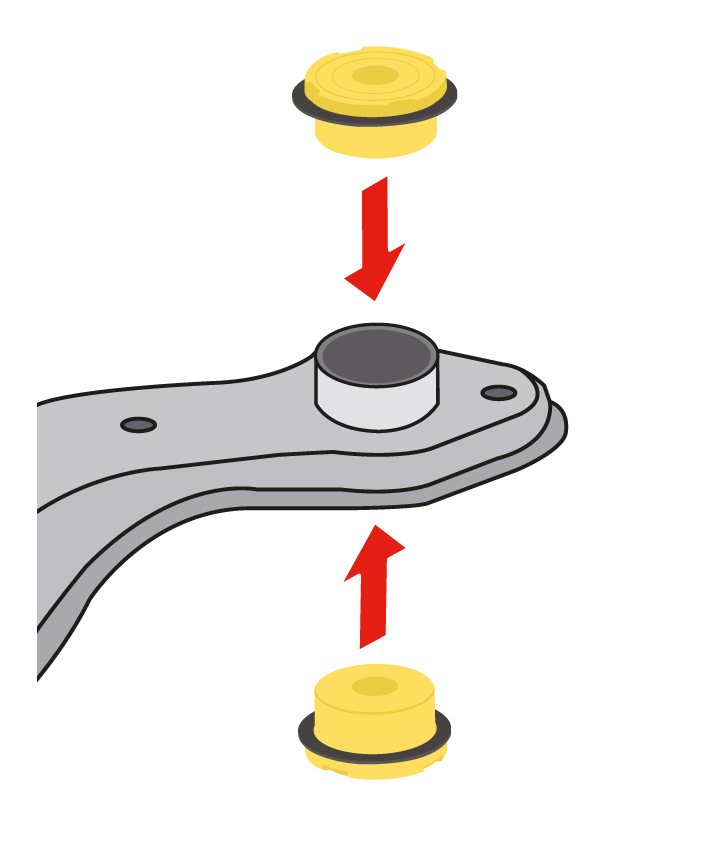

3

4

Thoroughly lubricate the metal bushing, then press it into the polyurethane bushings, and place a retaining washer underneath.

Manual shown above is just a presentation showing how the repair procedure can be made. TEDGUM® company does not bear responsibility for any errors in the manual and incorrect interpretation of the manual. Repair should be preceded by skilled personnel with the use of appropriate tools and with keeping all the safety means. All rights reserved.
